Features
- Schematic, physical layout and 3D — one project
- Devices at real size (IEC 60715, 17.5 mm module)
- Automatic wire routing through cable ducts
- Bill of materials: devices, wire length, rail and duct lengths
- Catalogue: breakers, RCDs, RCBOs, contactors, relays, meters
- Module capacity calculated from enclosure size
- Wire colour (L1/L2/L3/N/PE) and cross-section (0.5–25 mm²)
- Autosave, works offline; English, Russian and Uzbek interface
BOT ELECTRO is an app for designing electrical panels and planning their assembly. On first launch you enter the enclosure width, height and depth (or pick a ready 12/24/36/54/72-module size) and the app instantly calculates the module capacity.

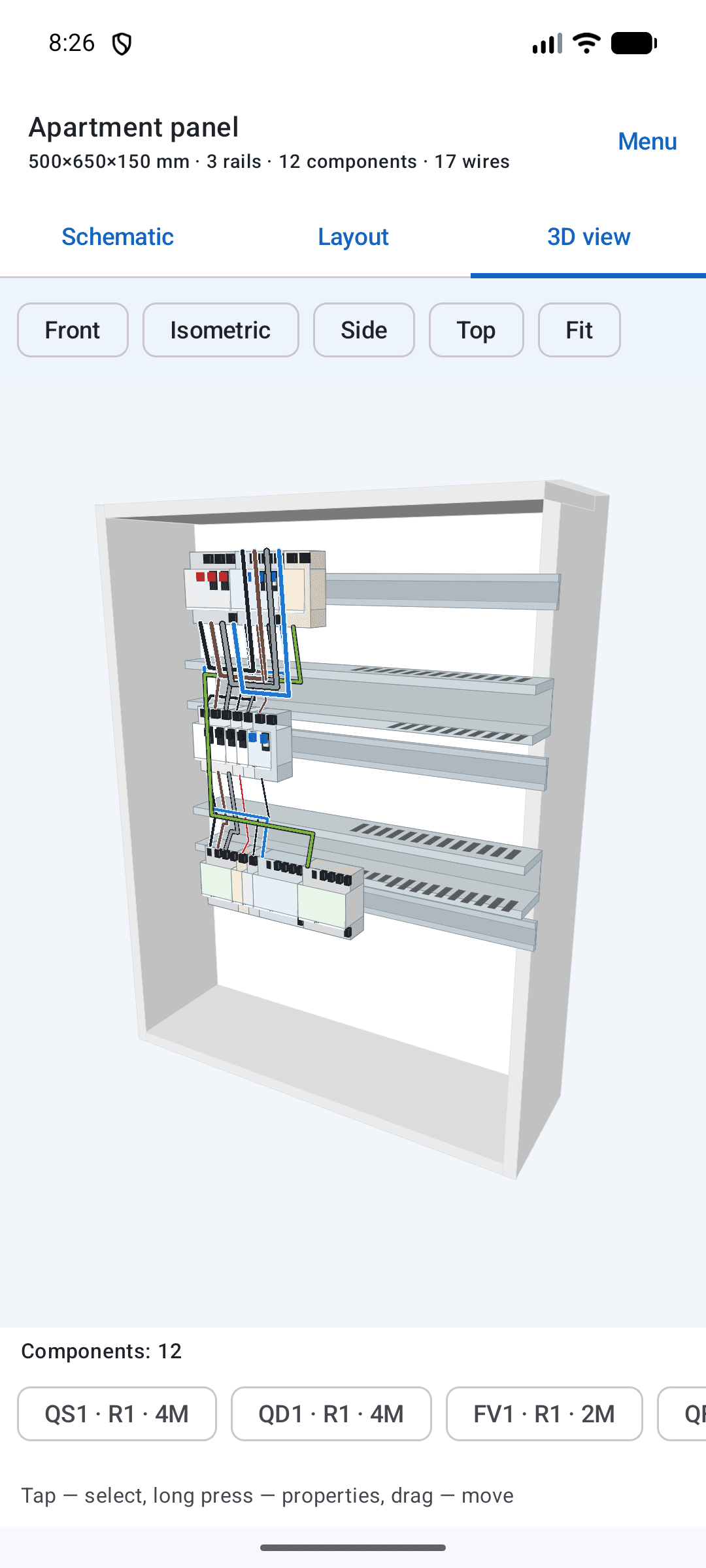

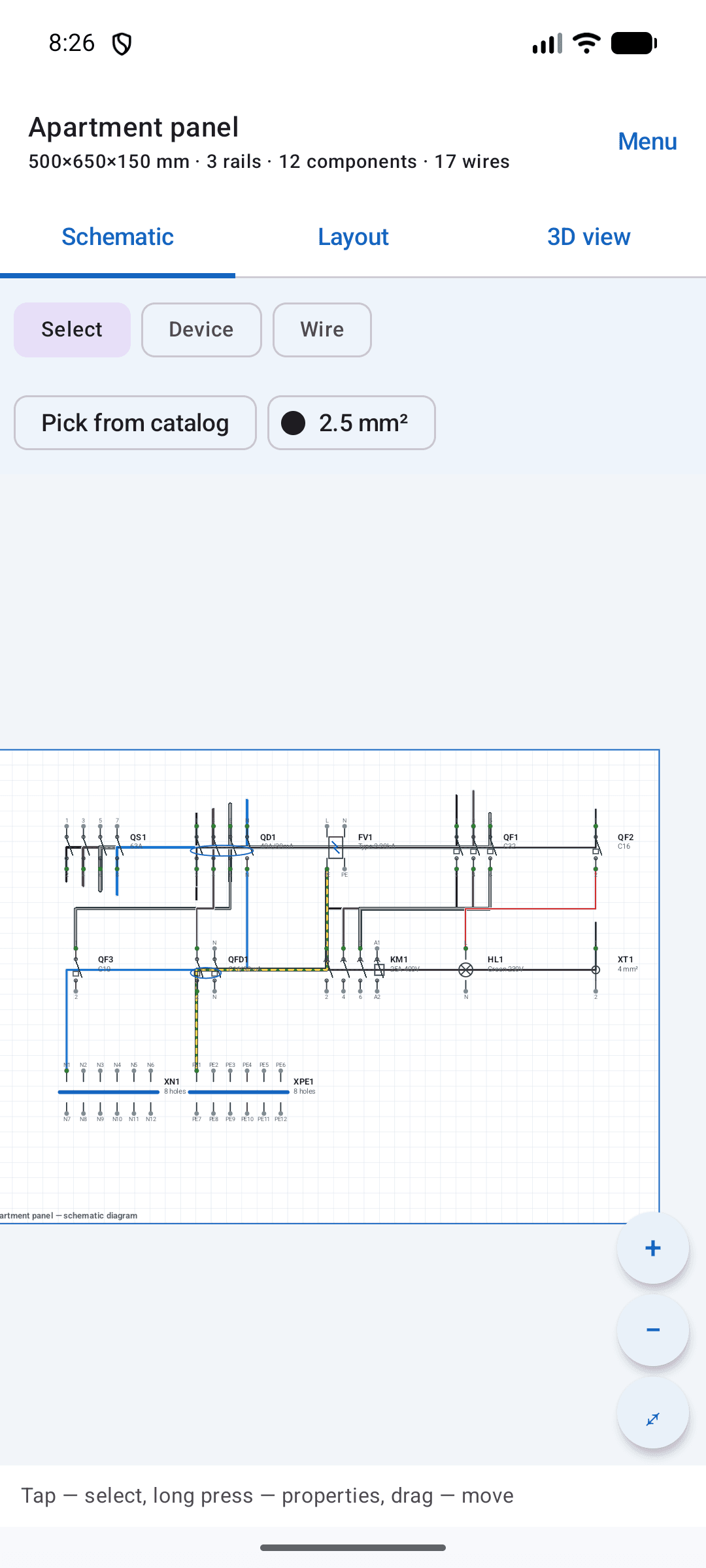

Three modes — schematic (IEC-style symbols), physical layout (DIN rails, slotted cable ducts and modular devices at real size) and a 3D view — share one project: a connection made in one mode appears in the others immediately. Wires are routed automatically through the ducts along the best path.

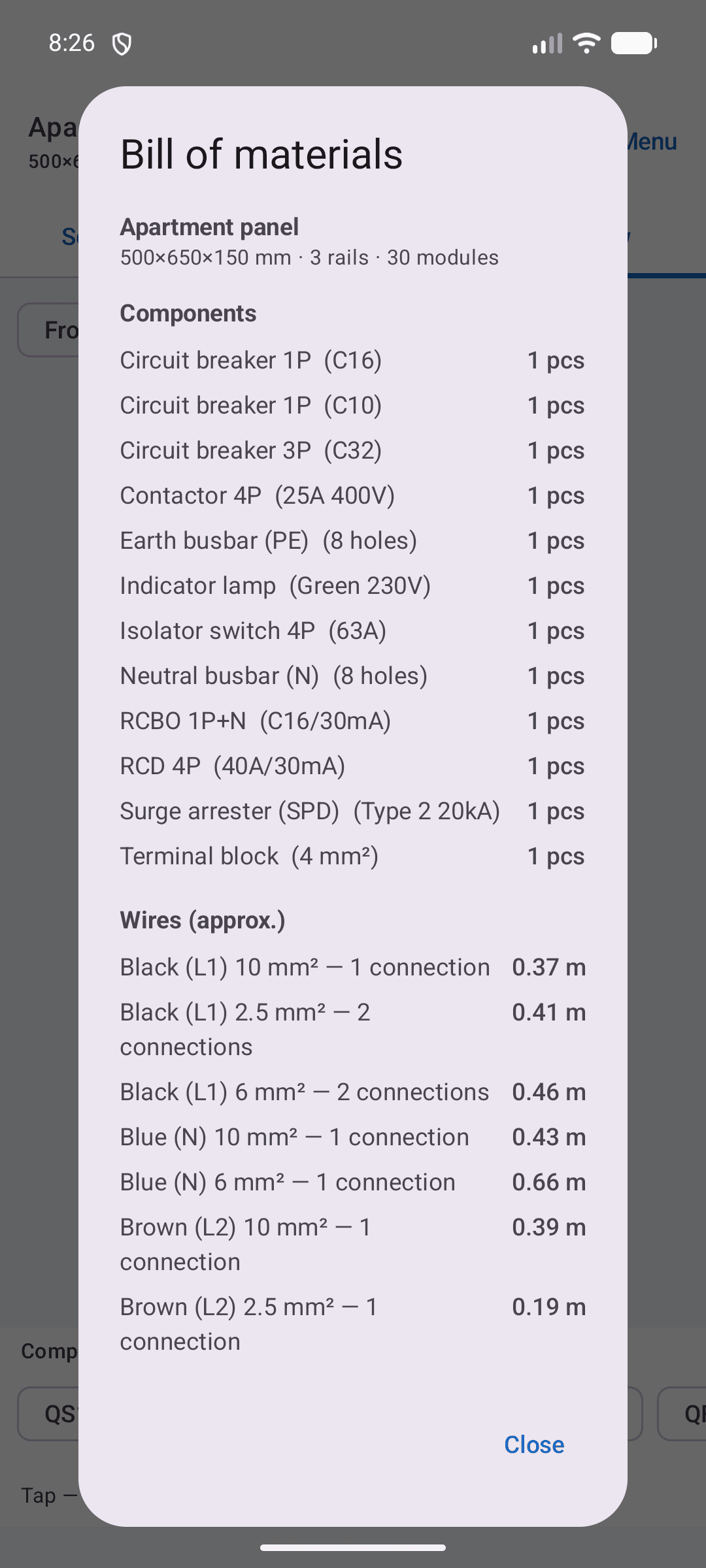

The bill of materials in the menu counts devices, wire length (with a 15% margin) and DIN rail and duct lengths — your shopping list is ready. Projects are saved automatically and stay only on your phone. The interface is available in English, Russian and Uzbek — switch the language from the menu.
Screenshots
